Icon Panel

Walk carbon neutral with our Icon range of Zero Carbon access floor solutions.

Icon Panel

The Icon Panel is the principal component of ASP’s signature Icon Series. The Icon Panels’ patented design features have revolutionised the access floor industry.

Download the Icon Catalogue Download Icon EPD
  • Outstanding static and live load performance
  • Panel design allows for fast precise installation
  • Non-combustible
  • Moisture resistant
  • Ease of maintenance and serviceability with interchangeable panels
  • Superior durability and lifespan contributing to a significant reduction in life cycle costs
  • Excellent earthing continuity
  • High recycled content
  • Contributes significantly to Green Star and LEED requirements through a completed product LCA & EPD
  • Patented design features create a quiet and comfortable underfoot solution

Explore the Icon Floor Panels

Icon Panel

  • Outstanding static and live load performance
  • Panel design allows for fast precise installation
  • Non-combustible
  • Moisture resistant
  • Ease of maintenance and serviceability with interchangeable panels
  • Superior durability and lifespan contributing to a significant reduction in life cycle costs
  • Excellent earthing continuity
  • High recycled content
  • Contributes significantly to Green Star and LEED requirements through a completed product LCA & EPD
  • Patented design features create a quiet and comfortable underfoot solution

SIZE 600mm x 600mm

DEPTH 33mm

CONSTRUCTION

The panels consist of a hardened steel top and bottom sheet plate with corrosion resistant protection, inside and out, encapsulating a structural cementitious core.

CORE Cementitious Compound

TOLERANCE

±0.25mm and a flatness tolerance of ±0.5mm measured on a diagonal across the top of the panel

FINISH

ASP’s standard powder coated finish.

CONNECTION

The panel is screw fixed to the pedestal head at all
four corners

Icon Panel Construction

Hardened Steel Top Plate

Moulded Steel Pan Bottom

Injected Cementitious Core

Machine Welded

Customer Testimonials

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Read the Icon Panel Case Studies

Stay updated with flooring innovations and insights.

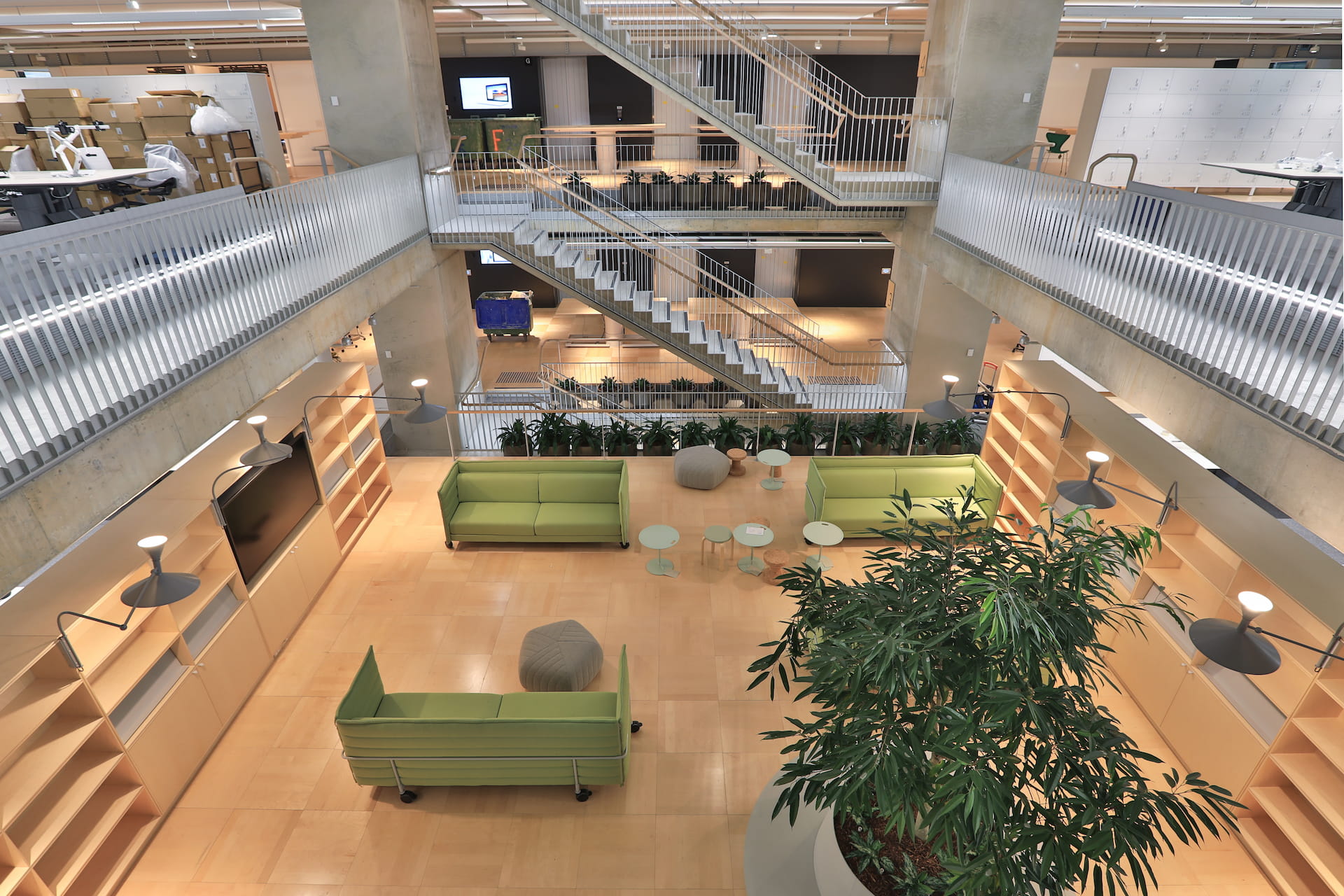

Arup, Barrack Place, Sydney
